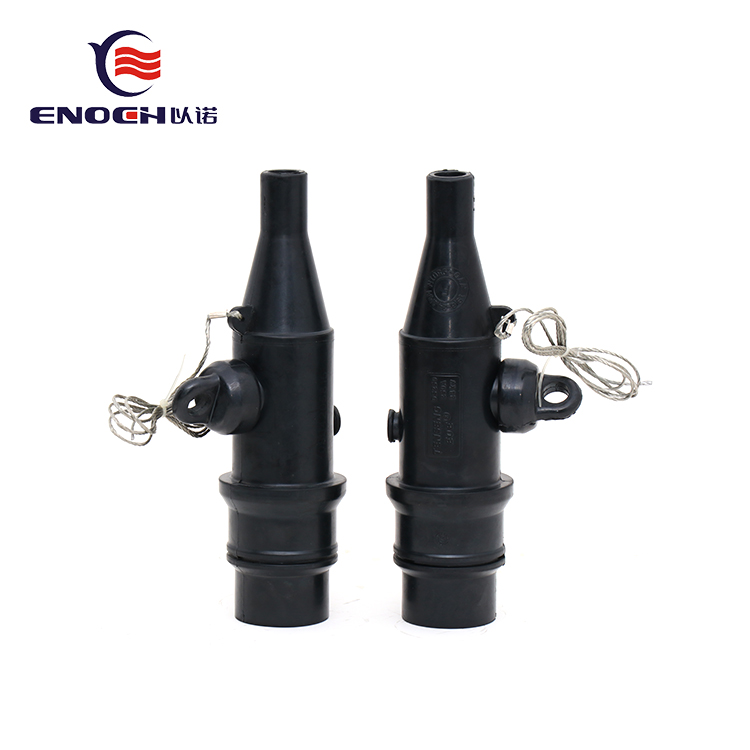

24KV 250A konektore zuzena

Zhejiang ENOCH electric co.,ltd is a large-scale 24KV 250A Straight Connector manufacturer and supplier in China. ENOCH 24KV 250A Straight Connector has been committed to the pursuit of high quality, fine, beautiful, new products, highly competitive product prices and supply speed, perfect service quality.摘要： 24kV 250A Straight Connector is for connection of polymeric cable to transformers, switchgear, motors and other equipment with a premoulded separable connector for indoor and outdoor installations. The system voltage up to 24kV. The continuous current is 250A (300A overload for 8hours). The Zhejiang ENOCH electric co.,ltd 24KV 250A Straight Connector is a fully shielded and insulated termination for connecting underground cable to transformers, switchgear, and other apparatus equipped with deadbreak bushings, junctions, or other deadbreak connectors.The Enoch 24KV 250A Straight Connector meets all the requirements of EN-50180,EN-50181 & IEC 60502, and is fully interchangeable with competitor's products and mating products that meet EN-50180 & EN-50181. Zhejiang ENOCH electric co.,ltd has been committed to the pursuit of high quality, fine, beautiful, new products, The 24KV 250A Straight Connector owns highly competitive product prices and supply speed, perfect service quality, in order to achieve the state of As Good as It Gets. We support minimum order quantity and offer free trial of new products. Scientific management mode, sound quality control guarantees system ISO9001: 2000 and products circuit operation experience of the past 20 years. Make the 24KV 250A Straight Connector used widely in numerous projects. The 24KV 250A Straight Connector Provides a fully screened and fully submersible separable connection when mated with the proper bushing or plug. Built-in capacitive test point to determine the circuit status or install a fault indicator. No minimum phase clearance requirements. Mounting can be vertical, horizontal, or any angle in between. 24KV 250A Straight Connector Tests conducted in accordance with IEC 60502. Partial discharge minimum extinction voltage-20kV; AC 60Hz for 1min (kV crest)-54 kV Test Point Voltage Test. Product Specification and Ratings Overview Technical Specification Voltage Class 24kV AC for 5 Minutes 54kV Impulse withstand voltage 125kV Continuous operating current 250A Overload (8 hrs. Max.) 300A Short circuit withstand 1s 12.5kA All the parameters of the 24KV 250A Straight Connector are in conformity with the requirements and qualified. Product Features and Performance 24kV 250A Straight Connector provides a fully screened and fully submersible separable connection when mated with the proper bushing or plug. Long-term operation under water or other mal-conditions. The built-in capacitive test point to determine the circuit status or install a fault indicator. No minimum phase clearance requirements. Mounting can be vertical, horizontal, or any angle in between. Ordering Information The 24KV 250A Straight Connector are packaged in a heavy duty polyethylene bag Each Kit contains: 1 Standard 24KV 250A Straight Connector Body 2 Bi-Metal or Copper Compression Connector 3 Drag Hook (M4) 4 Dished Nut 5 Stainless Steel Bail Assembly 6 Silicone Lubricant 7 Installation Instruction sheet 8 Clean paper Please inform the sales staff of the Cable Ranges (Insulation Diameter) and the cross-sectional area of the conductor before purchasing. Cable Ranges (Insulation Diameter) Cable Range Code Inches Millimeters A 0.700-0.920 17.8-23.1 B 0.780-0.925 19.8-23.5 C 0.898-1.043 22.8-26.5 E 0.925-1.028 23.5-26.1 G 1.043-1.161 26.5-29.5 K 1.161-1.280 29.5-32.5 Conductor Code Table Conductor Code Concentric or Compressed Compact or Solid AWG or kcmil mm2 AWG or kcmil mm2 01 #6 - #4 - 02 #4 - #3 25 03 #3 25 #2 35 04 #2 35 #1 - 05 #1 - 1/0 50 06 1/0 50 2/0 70 07 2/0 70 3/0 95 08 3/0 95 4/0 - 09 4/0 - 250 120 10 250 120 300 - Product Structure and Detail 1. SEMICONDUCTING SHIELD. Precision molded peroxide cured semiconducting shield provides ground shield continuity and meets the requirements of IEEE Standard 592. 2. INSULATION LAYER. High quality peroxide cured EPDM Insulation is mixed and formulated in-house for complete control of rubber characteristics. 3. SEMICONDUCTING INSERT. Precision molded peroxide cured semiconducting insert provides corona-free electrostatic shielding of the compression connector. 4. PIN PROBE. Tin plated copper probe allows for dependable switching operations. 5. COMPRESSION CONNECTOR. Standard Bi-Metal, or optional Copper, compression connector is sized to ensure a cool running connection with maximum current transfer. 6. CAPACITIVE TEST POINT. Capacitive test point on molded T-Body with snap-on cap provides a shielded, hot stick operable means to determine circuit condition. 7. DRAIN WIRE TAB. Drain wire tabs provide a convenient point to connect drain wire to ensure grounding of the connector shield. 8. OPERATING INTERFACE. TypeA-250A interface as described by EN50180N and 50181. Product Qualification 1. Excellent quality Our 24KV 250A Straight Connector are tested by third party power labs according to IEC standards.The company has obtained ISO9000 quality system certification and environmental protection certification. 2.Professional services We have been doing advanced research in the field of24KV 250A Straight Connector manufacturing. In order to improve the quality and level of service, our personnel completed the QC training, and set up a special inspection department. 3.Powerful technology Zhejiang ENOCH electric co.,ltd have own factory and have 20 years experience in power connection. Our Service Besides our existing products, we can produce various products according to customers' drawings or samples. In the early stage, we will communicate with you in detail. After the product is confirmed, we will give the customer a sample of the goods before production. When the customer confirms, we will carry out production. If have any quality problems, we will solve it. Our aim is to be honest, have sincerity and promise, harmonious and altruistic，that is why the customers choose and believe us. FAQ Q1:Can you can design the connectors/bushings according to our size? A1:Yes Q2:If OEM is acceptable? A2:Yes Q3:Are you a trading company or a manufacturer? A3:We are a manufacturer. Q4:How long is your delivery time? A4:Base on the quantity. Q5:Where is your factory located? A5:Lishui city Zhejiang Province China.
